RoseCase ProSecure · Medium caseRCPS 405

IP67 waterproof hard case

538 × 405 × 190mmInner W × H × D
41.4LVolume
4.76kgWeight
Request a Quote All 45 ProSecure sizes

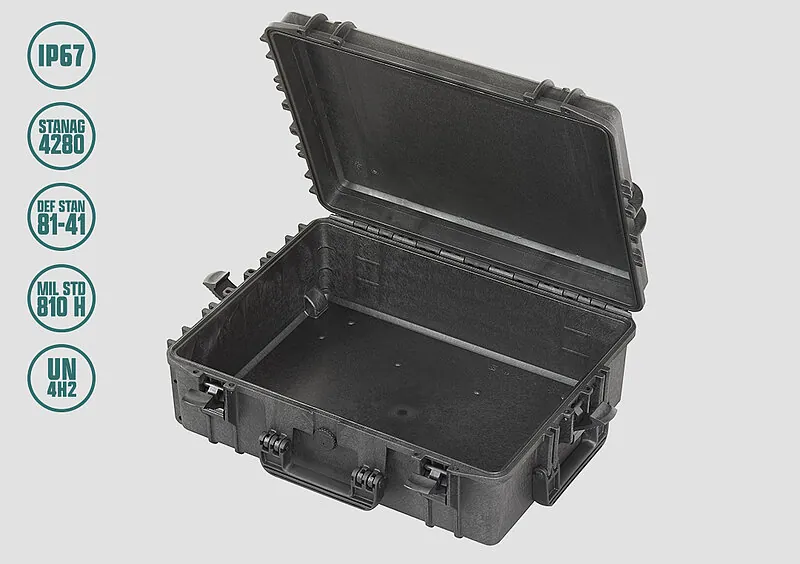

RoseCase ProSecure 405 open
CertifiedIP67 certifiedIP67STANAG 4280 certifiedSTANAG 4280DEF-STAN 81-41 certifiedDEF-STAN 81-41UN4H2 certifiedUN4H2MIL STD 810 H certifiedMIL STD 810 H
Dimensions, to scale
W 538H 405D 190
Real proportionsDashed: lid / base split
A4 sheetInner footprint 538 x 405 mm
Top view, same scale
Inner W × H × D538 × 405 × 190 mm
Outer W × H × D594 × 473 × 215 mm
Base depth140 mm
Lid depth50 mm
Temperature range-30°C to 90°C
Packaging unit1 per carton
About this model

RCPS 405 in brief

The RCPS 405 is an IP67 waterproof protective case from the RoseCase ProSecure range (Rose Plastic, Germany): 41.4 L, inner 538 × 405 × 190 mm, 4.76 kg, supplied in India with custom foam and branding by Candid Medpack, Ahmedabad.

  • IP67 waterproof & dustproof
  • Pressure equalisation valve
  • Padlock eyelets
Colours (stock)
black
Interior

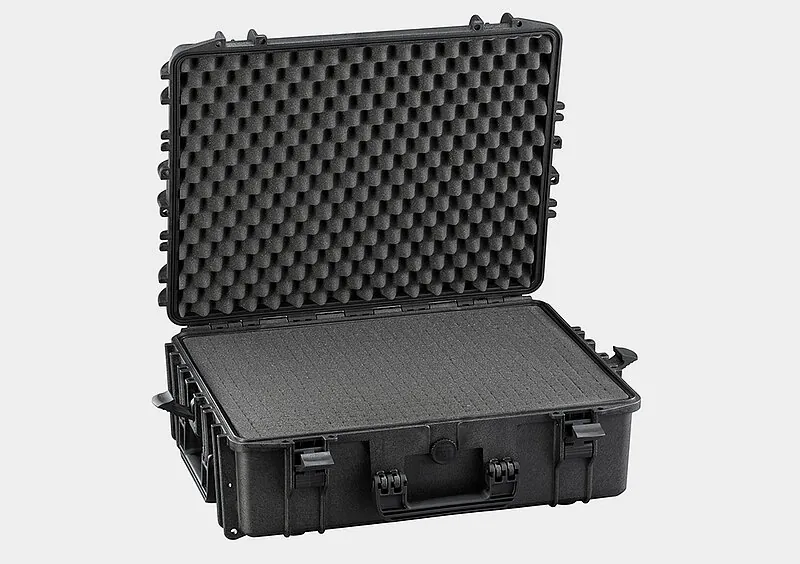

Convoluted foamCubed foamCustomized foamEmpty
Get a quote Ask a question
Rose Case Authorised partner · stock & foam workshop in Ahmedabad · GST invoice
Features & functions

What the RCPS 405 is built with

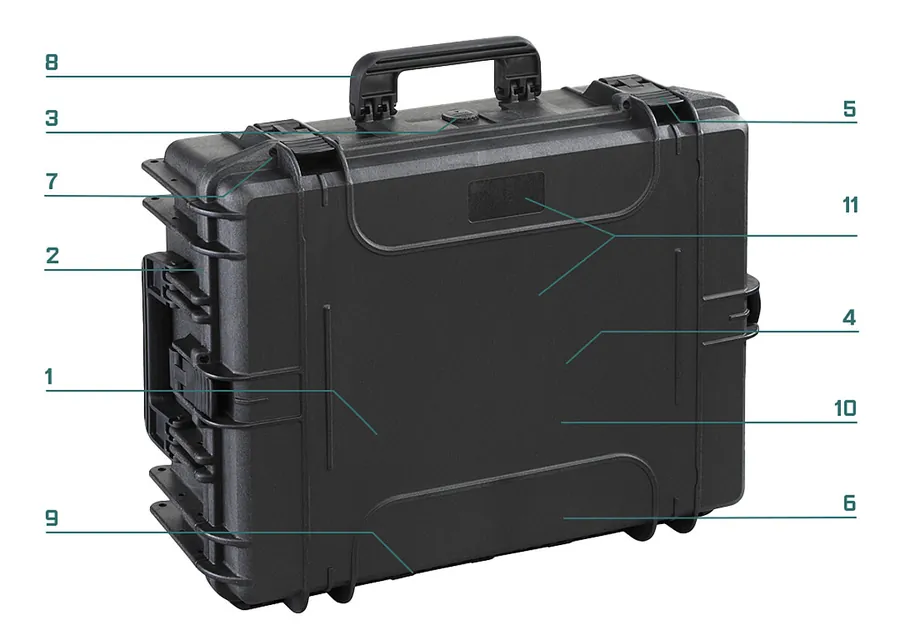

Numbers match the diagram. Hover a feature to see it on the case.
RoseCase ProSecure RCPS 405 numbered feature diagram
  • Extra-thick walls1

    Extremely impact-resistant thanks to extra-thick walls – built for the toughest conditions

    1
  • Sealed lid2

    Sealed lid for maximum protection against the ingress of dust, water, and moisture

    2
  • Pressure valve3

    Automatic pressure equalization valve prevents vacuum formation and protects the contents from air pressure changes

    3
  • Thermally stable4

    Thermally stable – even when exposed to extreme temperatures

    4
  • Two-stage snap locks5

    Easy-open, two-stage snap closures for maximum security

    5
  • Corrosion-proof pins6

    Corrosion-resistant nylon pins for long-lasting durability

    6
  • Padlock eyelets7

    Padlock eyelets for added security during transport

    7
  • Carry handle8

    Comfortable carrying handle

    8
  • Full-length hinge9

    Sturdy full-length hinge for enhanced structural integrity

    9
  • Foam & divider options10

    Wide range of interior options available – including custom foam materials, pick-and-pluck foam, convoluted foam, or divider systems for flexible organization

    10
  • Print & label branding11

    Branding options available via printing or labeling

    11

Each tile flips to show the manufacturer's wording; the number on the tile is the number on the diagram.

Datasheet

RCPS 405 specifications

Manufacturer data · W × H × D in millimetres
Model
RCPS 405
Range
RoseCase ProSecure · Medium cases
Inner dimensions
538 × 405 × 190 mm
Outer dimensions
594 × 473 × 215 mm
Inner depth
Base 140 mm · Lid 50 mm
Volume
41.4 L
Weight (empty)
4.76 kg
Temperature range
-30°C to 90°C
Packaging unit
1 per carton
Materials
Polypropylene (PP), Nylon
Stock colours
black
Foam options
Convoluted foam, Cubed foam, Customized foam; custom-cut by Candid Medpack
Certifications
IP67dust-tight; immersion to 1 m for 30 min
STANAG 4280NATO packaging standard
DEF-STAN 81-41UK MoD packaging standard
UN4H2UN dangerous-goods packaging
MIL STD 810 HUS military environmental tests
Branding
Screen or pad printing, labels; custom shell and closure colours on request

Official PDF datasheet or certification manual? Ask us — we send it with your quotation.

Made for your product

Customise the RCPS 405

Fitted and branded in Ahmedabad, delivered as a finished kit.

Custom-cut foam

CNC-cut or thermoformed inserts around your items.

Printing & labels

Logo and handling text on the shell or lid.

Colours & accessories

Other colours for larger runs. Straps, dividers, pouches, padlocks.

Compare sizes

ProSecure sizes near the RCPS 405

All 45 sizes

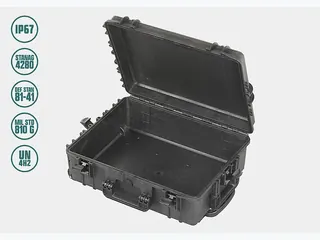

RoseCase ProSecure RCPS 405 TR

RCPS 405 TR

538 × 405 × 190 mm
41.4 L · 6.4 kg · IP67 · Trolley
View details

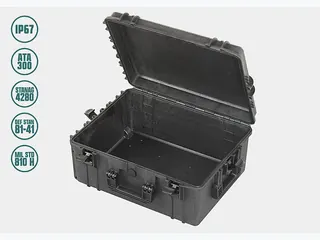

RoseCase ProSecure RCPS 405 L

RCPS 405 L

538 × 405 × 245 mm
53.3 L · 5.3 kg · IP67
View details

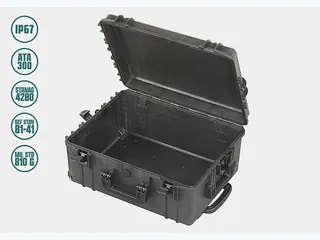

RoseCase ProSecure RCPS 405 L TR

RCPS 405 L TR

538 × 405 × 245 mm
53.3 L · 6.9 kg · IP67 · Trolley
View details

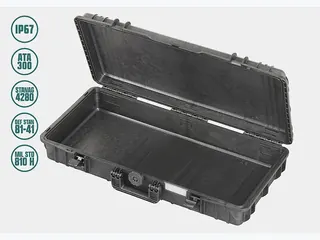

RoseCase ProSecure RCPS 370

RCPS 370

800 × 370 × 140 mm
41.4 L · 5 kg · IP67
View details

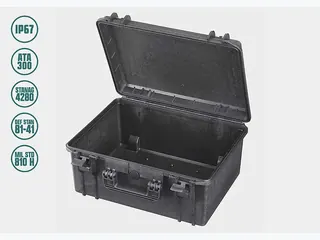

RoseCase ProSecure RCPS 335/2

RCPS 335/2

465 × 335 × 220 mm
34.2 L · 3.42 kg · IP67
View details
RoseCase ProSecure RCPS 335/2 TR

RCPS 335/2 TR

465 × 335 × 220 mm
34.2 L · 4.42 kg · IP67 · Trolley
View details
FAQ

RCPS 405 questions, answered

What are the dimensions and weight of the RCPS 405?

The RCPS 405 measures 538 × 405 × 190 mm inside and 594 × 473 × 215 mm outside (W × H × D). The base is 140 mm deep and the lid 50 mm. Usable volume is 41.4 L and the empty case weighs 4.76 kg.

Is the RCPS 405 waterproof?

Yes. The RCPS 405 is rated IP67: dust-tight and protected against temporary immersion in water (1 m for 30 minutes). The lid seal keeps out water, dust and moisture, and an automatic pressure equalisation valve prevents a vacuum forming after altitude or temperature changes. It is also tested to STANAG 4280, DEF-STAN 81-41, UN4H2 and MIL STD 810 H.

Can I get custom foam for the RCPS 405?

Yes. The RCPS 405 can be supplied empty or with convoluted foam, cubed foam or customized foam. Candid Medpack designs and cuts customised foam in Ahmedabad, so instruments, devices or tools sit in a precise cavity; send us the items or their drawings and we prototype the insert.

What colours and branding options are available for the RCPS 405?

The RCPS 405 is stocked in black. The surface takes screen or pad printing and labels, so your logo, product name or handling instructions can go directly on the case.

Need the RCPS 405 with foam cut for your equipment?

Send the items or drawings; we confirm fit, propose the insert and quote from stock in India.
