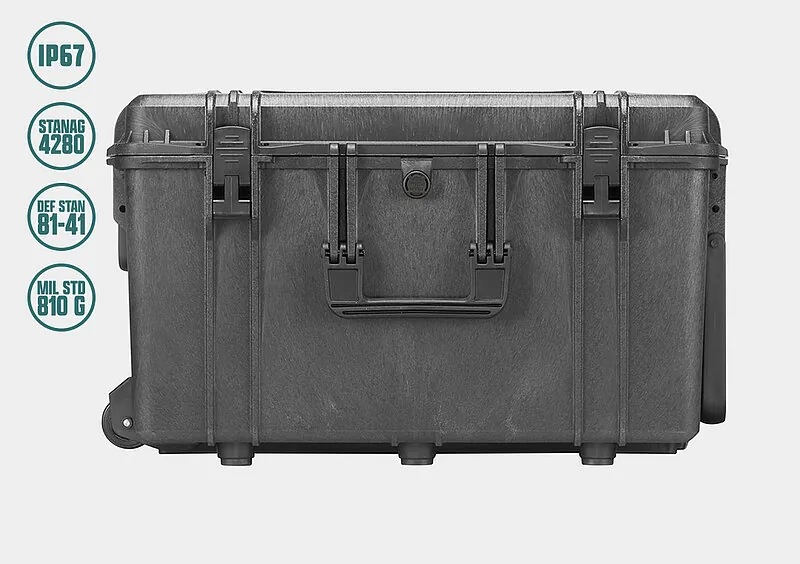

RoseCase ProSecure · Large caseRCPS 615 TR
IP67 waterproof hard case with trolley
IP67
STANAG 4280
DEF-STAN 81-41
MIL STD 810 GRCPS 615 TR in brief
The RCPS 615 TR is an IP67 waterproof protective case from the RoseCase ProSecure range (Rose Plastic, Germany): 135 L, inner 615 × 615 × 360 mm, 12.6 kg, supplied in India with custom foam and branding by Candid Medpack, Ahmedabad.
- IP67 waterproof & dustproof
- Pressure equalisation valve

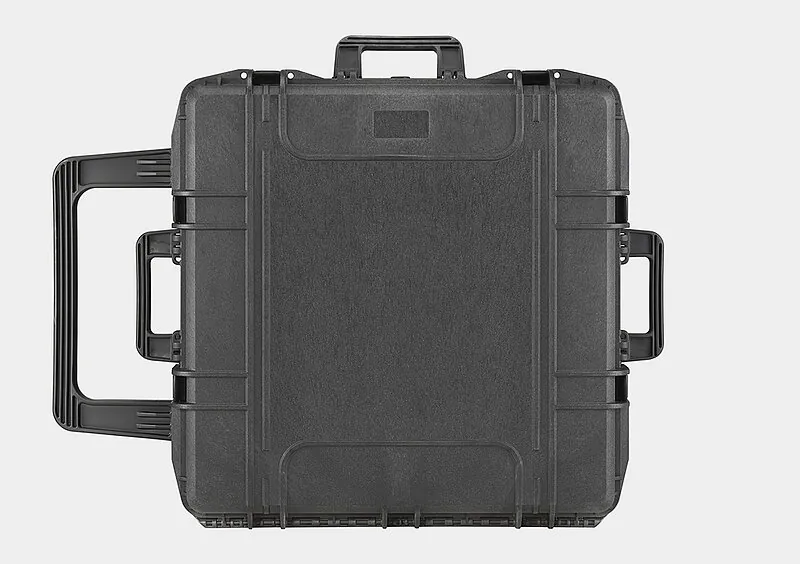

- Telescopic handle & wheels
- Padlock eyelets
Authorised partner · stock & foam workshop in Ahmedabad · GST invoiceWhat the RCPS 615 TR is built with

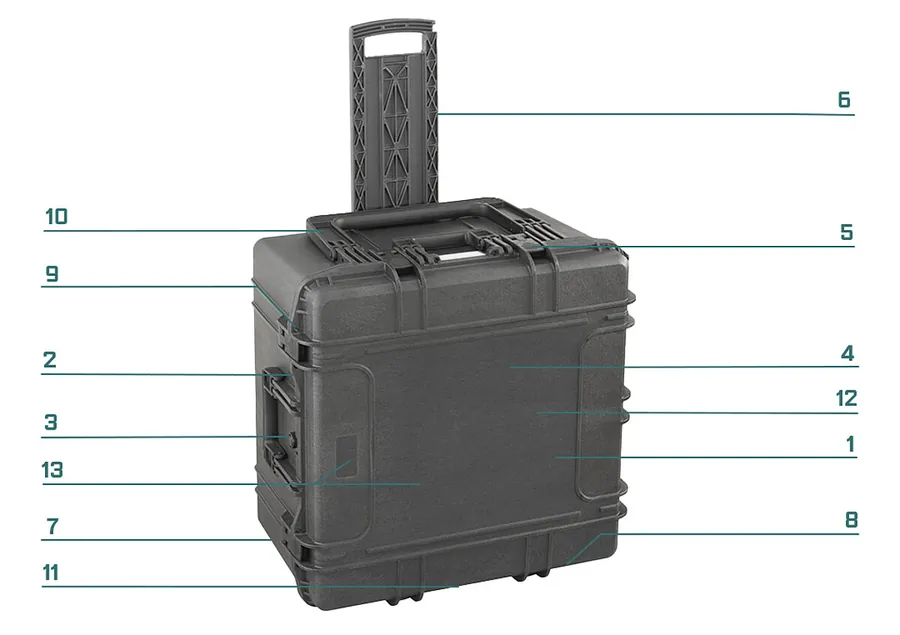

Numbers match the diagram. Hover a feature to see it on the case.
- Extra-thick walls1
Extremely impact-resistant thanks to extra-thick walls – built for the toughest conditions
1 - Sealed lid2
Sealed lid for maximum protection against the ingress of dust, water, and moisture
2 - Pressure valve3
Automatic pressure equalization valve prevents vacuum formation and protects the contents from air pressure changes
3 - Thermally stable4
Thermally stable – even when exposed to extreme temperatures
4 - Two-stage snap locks5
Easy-open, two-stage snap closures for maximum security
5 - Telescopic handle6
Telescopic handle
6 - Sturdy wheels7
Sturdy wheels for smooth, stable transport
7 - Corrosion-proof pins8
Corrosion-resistant nylon pins for long-lasting durability
8 - Padlock eyelets9
Padlock eyelets for added security during transport
9 - Carry handle10
Comfortable carrying handle
10 - Full-length hinge11
Sturdy full-length hinge for enhanced structural integrity
11 - Foam & divider options12

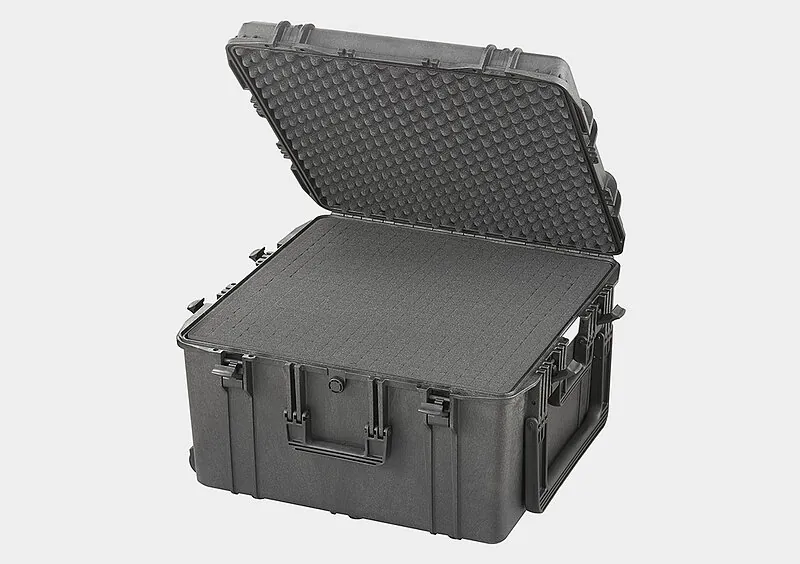

Wide range of interior options available – including custom foam materials, pick-and-pluck foam, convoluted foam, or divider systems for flexible organization
12 - Print & label branding13
Branding options available via printing or labeling
13
Each tile flips to show the manufacturer's wording; the number on the tile is the number on the diagram.
RCPS 615 TR specifications
Manufacturer data · W × H × D in millimetres- Model
- RCPS 615 TR
- Range
- RoseCase ProSecure · Large cases
- Inner dimensions
- 615 × 615 × 360 mm
- Outer dimensions
- 680 × 675 × 405 mm
- Inner depth
- Base 300 mm · Lid 60 mm
- Volume
- 135 L
- Weight (empty)
- 12.6 kg
- Temperature range
- -30°C to 90°C
- Packaging unit
- 1 per carton
- Materials
- Polypropylene (PP), Nylon
- Stock colours
- black
- Foam options
- Convoluted foam, Cubed foam, Customized foam; custom-cut by Candid Medpack
- Certifications
- IP67dust-tight; immersion to 1 m for 30 minSTANAG 4280NATO packaging standardDEF-STAN 81-41UK MoD packaging standardMIL STD 810 GUS military environmental tests
- Branding
- Screen or pad printing, labels; custom shell and closure colours on request
Official PDF datasheet or certification manual? Ask us — we send it with your quotation.
Customise the RCPS 615 TR
Fitted and branded in Ahmedabad, delivered as a finished kit.Custom-cut foam
CNC-cut or thermoformed inserts around your items.
Printing & labels
Logo and handling text on the shell or lid.
Colours & accessories
Other colours for larger runs. Straps, dividers, pouches, padlocks.
ProSecure sizes near the RCPS 615 TR
All 45 sizes
RCPS 615 TR questions, answered
What are the dimensions and weight of the RCPS 615 TR?
The RCPS 615 TR measures 615 × 615 × 360 mm inside and 680 × 675 × 405 mm outside (W × H × D). The base is 300 mm deep and the lid 60 mm. Usable volume is 135 L and the empty case weighs 12.6 kg.
Is the RCPS 615 TR waterproof?
Yes. The RCPS 615 TR is rated IP67: dust-tight and protected against temporary immersion in water (1 m for 30 minutes). The lid seal keeps out water, dust and moisture, and an automatic pressure equalisation valve prevents a vacuum forming after altitude or temperature changes. It is also tested to STANAG 4280, DEF-STAN 81-41 and MIL STD 810 G.
Does the RCPS 615 TR have wheels?
Yes. The RCPS 615 TR has a built-in trolley system: sturdy wheels and a retractable telescopic handle, plus a carrying handle for lifting it into a vehicle.
Can I get custom foam for the RCPS 615 TR?
Yes. The RCPS 615 TR can be supplied empty or with convoluted foam, cubed foam or customized foam. Candid Medpack designs and cuts customised foam in Ahmedabad, so instruments, devices or tools sit in a precise cavity; send us the items or their drawings and we prototype the insert.
What colours and branding options are available for the RCPS 615 TR?
The RCPS 615 TR is stocked in black. The surface takes screen or pad printing and labels, so your logo, product name or handling instructions can go directly on the case.
Need the RCPS 615 TR with foam cut for your equipment?
Send the items or drawings; we confirm fit, propose the insert and quote from stock in India.
