RoseCase ProSecure · Large caseRCPS 680/2 RL
IP67 waterproof hard case with wheels
IP67
ATA 300
STANAG 4280
DEF-STAN 81-41
MIL STD 810 GRCPS 680/2 RL in brief

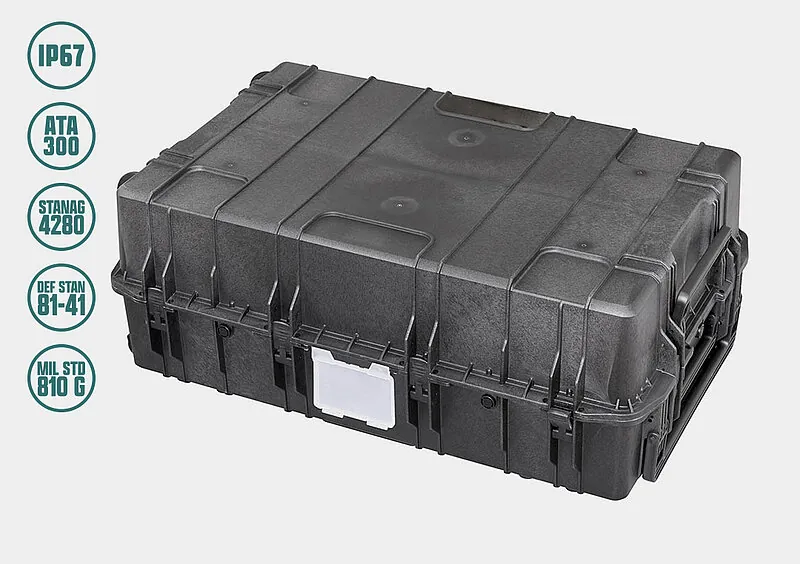

The RCPS 680/2 RL is an IP67 waterproof protective case from the RoseCase ProSecure range (Rose Plastic, Germany): 300 L, inner 1090 × 680 × 410 mm, 19.5 kg, supplied in India with custom foam and branding by Candid Medpack, Ahmedabad.
- IP67 waterproof & dustproof
- Pressure equalisation valve
- Built-in wheels
- Side handles, two-person lift
- Removable lid
- Padlock eyelets
Authorised partner · stock & foam workshop in Ahmedabad · GST invoiceWhat the RCPS 680/2 RL is built with

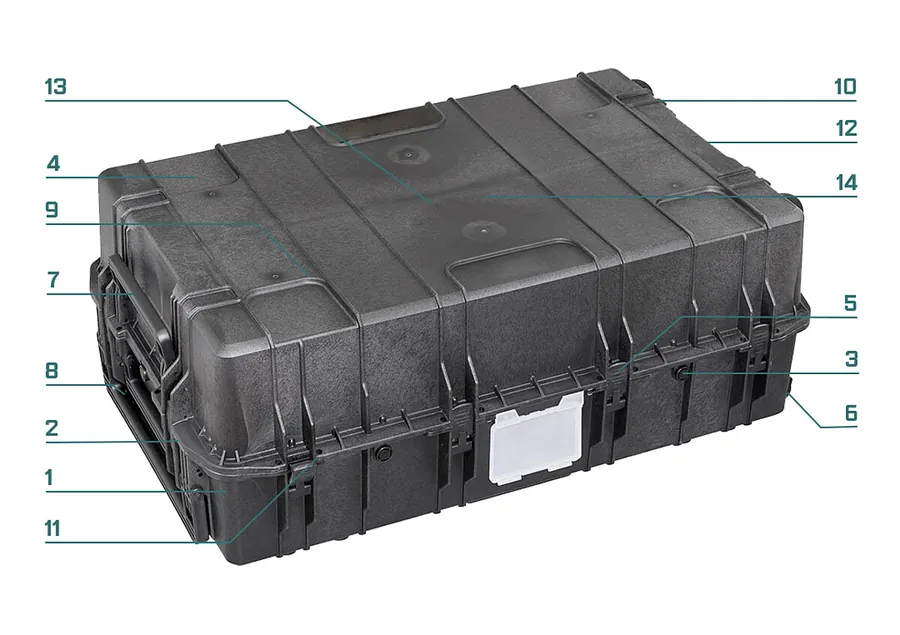

Numbers match the diagram. Hover a feature to see it on the case.
- Extra-thick walls1
Extremely impact-resistant thanks to extra-thick walls – built for the toughest conditions
1 - Sealed lid2
Sealed lid for maximum protection against the ingress of dust, water, and moisture
2 - Pressure valve3
Automatic pressure equalization valve prevents vacuum formation and protects the contents from air pressure changes
3 - Thermally stable4
Thermally stable – even when exposed to extreme temperatures
4 - Two-stage snap locks5
Easy-open, two-stage snap closures for maximum security
5 - Sturdy wheels6
Sturdy wheels for smooth, stable transport
6 - Side handles7
Side handles for two-person transport.
7 - Folding handle8
comfortable folding handle
8 - Removable lid9

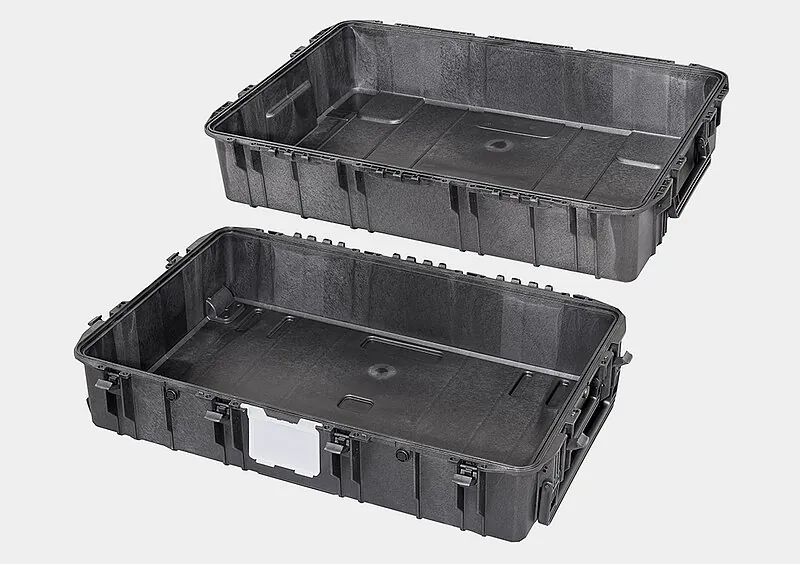

Removable lid
9 - Corrosion-proof pins10
Corrosion-resistant nylon pins for long-lasting durability
10 - Padlock eyelets11
Padlock eyelets for added security during transport
11 - Full-length hinge12
Sturdy full-length hinge for enhanced structural integrity
12 - Foam & divider options13
Wide range of interior options available – including custom foam materials, pick-and-pluck foam, convoluted foam, or divider systems for flexible organization
13 - Print & label branding14
Branding options available via printing or labeling
14
Each tile flips to show the manufacturer's wording; the number on the tile is the number on the diagram.
RCPS 680/2 RL specifications
Manufacturer data · W × H × D in millimetres- Model
- RCPS 680/2 RL
- Range
- RoseCase ProSecure · Large cases
- Inner dimensions
- 1090 × 680 × 410 mm
- Outer dimensions
- 1178 × 780 × 447 mm
- Inner depth
- Base 210 mm · Lid 200 mm
- Volume
- 300 L
- Weight (empty)
- 19.5 kg
- Temperature range
- -51°C to 90°C
- Packaging unit
- 1 per carton
- Materials
- Polypropylene (PP), Nylon
- Stock colours
- black
- Foam options
- Convoluted foam, Cubed foam, Customized foam; custom-cut by Candid Medpack
- Certifications
- IP67dust-tight; immersion to 1 m for 30 minATA 300airline transport packagingSTANAG 4280NATO packaging standardDEF-STAN 81-41UK MoD packaging standardMIL STD 810 GUS military environmental tests
- Branding
- Screen or pad printing, labels; custom shell and closure colours on request
Official PDF datasheet or certification manual? Ask us — we send it with your quotation.
Customise the RCPS 680/2 RL
Fitted and branded in Ahmedabad, delivered as a finished kit.Custom-cut foam
CNC-cut or thermoformed inserts around your items.
Printing & labels
Logo and handling text on the shell or lid.
Colours & accessories
Other colours for larger runs. Straps, dividers, pouches, padlocks.
ProSecure sizes near the RCPS 680/2 RL
All 45 sizes
RCPS 680/2 RL questions, answered
What are the dimensions and weight of the RCPS 680/2 RL?
The RCPS 680/2 RL measures 1090 × 680 × 410 mm inside and 1178 × 780 × 447 mm outside (W × H × D). The base is 210 mm deep and the lid 200 mm. Usable volume is 300 L and the empty case weighs 19.5 kg.
Is the RCPS 680/2 RL waterproof?
Yes. The RCPS 680/2 RL is rated IP67: dust-tight and protected against temporary immersion in water (1 m for 30 minutes). The lid seal keeps out water, dust and moisture, and an automatic pressure equalisation valve prevents a vacuum forming after altitude or temperature changes. It is also tested to ATA 300, STANAG 4280, DEF-STAN 81-41 and MIL STD 810 G.
Does the RCPS 680/2 RL have wheels?
Yes. The RCPS 680/2 RL has built-in wheels for rolling heavy loads and side handles for two-person lifting. It does not have a telescopic trolley handle; see the TR versions in the ProSecure range for that.
Can I get custom foam for the RCPS 680/2 RL?
Yes. The RCPS 680/2 RL can be supplied empty or with convoluted foam, cubed foam or customized foam. Candid Medpack designs and cuts customised foam in Ahmedabad, so instruments, devices or tools sit in a precise cavity; send us the items or their drawings and we prototype the insert.
What colours and branding options are available for the RCPS 680/2 RL?
The RCPS 680/2 RL is stocked in black. The surface takes screen or pad printing and labels, so your logo, product name or handling instructions can go directly on the case.
Need the RCPS 680/2 RL with foam cut for your equipment?
Send the items or drawings; we confirm fit, propose the insert and quote from stock in India.
