RoseCase ProSecure · Small caseRCPS 195 L
IP67 waterproof hard case
IP67RCPS 195 L in brief
The RCPS 195 L is an IP67 waterproof protective case from the RoseCase ProSecure range (Rose Plastic, Germany): 4.9 L, inner 316 × 195 × 81 mm, 0.58 kg, supplied in India with custom foam and branding by Candid Medpack, Ahmedabad.
- IP67 waterproof & dustproof
- Pressure equalisation valve
- Padlock eyelets
Authorised partner · stock & foam workshop in Ahmedabad · GST invoiceWhat the RCPS 195 L is built with

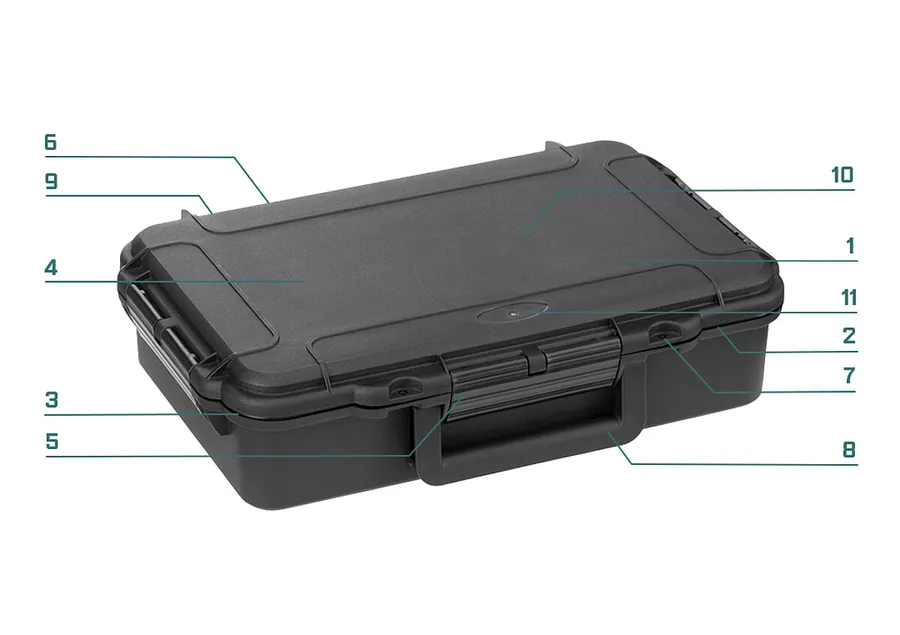

Numbers match the diagram. Hover a feature to see it on the case.
- Extra-thick walls1
Extremely impact-resistant thanks to extra-thick walls – built for the toughest conditions
1 - Sealed lid2
Sealed lid for maximum protection against the ingress of dust, water, and moisture
2 - Pressure valve3
Automatic pressure equalization valve prevents vacuum formation and protects the contents from air pressure changes
3 - Thermally stable4
Thermally stable – even when exposed to extreme temperatures
4 - Two-stage snap locks5
Easy-open, two-stage snap closures for maximum security
5 - Corrosion-proof pins6
Corrosion-resistant nylon pins for long-lasting durability
6 - Padlock eyelets7
Padlock eyelets for added security during transport
7 - Carry handle8
Comfortable carrying handle
8 - Full-length hinge9
Sturdy full-length hinge for enhanced structural integrity
9 - Foam & divider options10
Wide range of interior options available – including custom foam materials, pick-and-pluck foam, convoluted foam, or divider systems for flexible organization
10 - Print & label branding11
Branding options available via printing or labeling
11
Each tile flips to show the manufacturer's wording; the number on the tile is the number on the diagram.
RCPS 195 L specifications
Manufacturer data · W × H × D in millimetres- Model
- RCPS 195 L
- Range
- RoseCase ProSecure · Small cases
- Inner dimensions
- 316 × 195 × 81 mm
- Outer dimensions
- 350 × 230 × 86 mm
- Inner depth
- Base 65 mm · Lid 16 mm
- Volume
- 4.9 L
- Weight (empty)
- 0.58 kg
- Temperature range
- -10°C to 80°C
- Packaging unit
- 4 per carton
- Materials
- Polypropylene (PP), Nylon
- Stock colours
- black
- Foam options

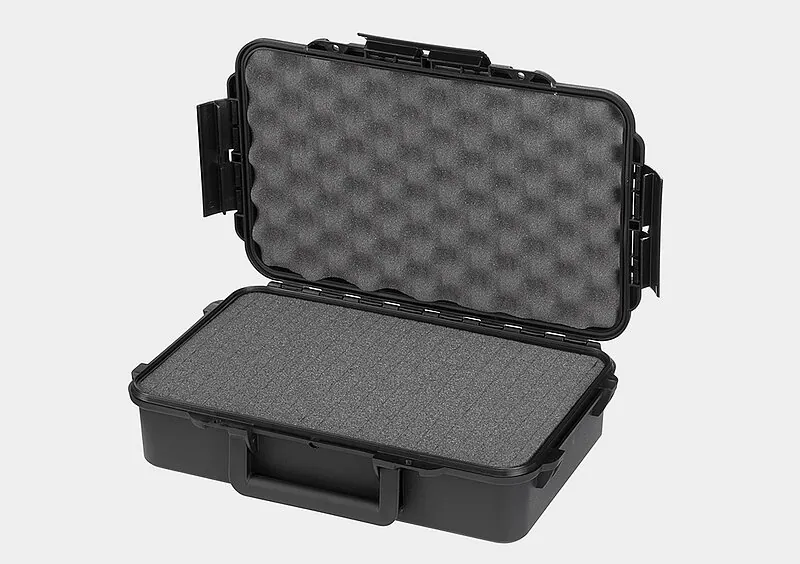

- Convoluted foam, Cubed foam, Customized foam; custom-cut by Candid Medpack
- Certifications
- IP67dust-tight; immersion to 1 m for 30 min
- Branding
- Screen or pad printing, labels; custom shell and closure colours on request
Official PDF datasheet or certification manual? Ask us — we send it with your quotation.
Customise the RCPS 195 L
Fitted and branded in Ahmedabad, delivered as a finished kit.Custom-cut foam
CNC-cut or thermoformed inserts around your items.
Printing & labels
Logo and handling text on the shell or lid.
Colours & accessories
Other colours for larger runs. Straps, dividers, pouches, padlocks.
RCPS 195 L questions, answered
What are the dimensions and weight of the RCPS 195 L?
The RCPS 195 L measures 316 × 195 × 81 mm inside and 350 × 230 × 86 mm outside (W × H × D). The base is 65 mm deep and the lid 16 mm. Usable volume is 4.9 L and the empty case weighs 0.58 kg.
Is the RCPS 195 L waterproof?
Yes. The RCPS 195 L is rated IP67: dust-tight and protected against temporary immersion in water (1 m for 30 minutes). The lid seal keeps out water, dust and moisture, and an automatic pressure equalisation valve prevents a vacuum forming after altitude or temperature changes.
Can I get custom foam for the RCPS 195 L?
Yes. The RCPS 195 L can be supplied empty or with convoluted foam, cubed foam or customized foam. Candid Medpack designs and cuts customised foam in Ahmedabad, so instruments, devices or tools sit in a precise cavity; send us the items or their drawings and we prototype the insert.
What colours and branding options are available for the RCPS 195 L?
The RCPS 195 L is stocked in black. The surface takes screen or pad printing and labels, so your logo, product name or handling instructions can go directly on the case.
Need the RCPS 195 L with foam cut for your equipment?
Send the items or drawings; we confirm fit, propose the insert and quote from stock in India.
