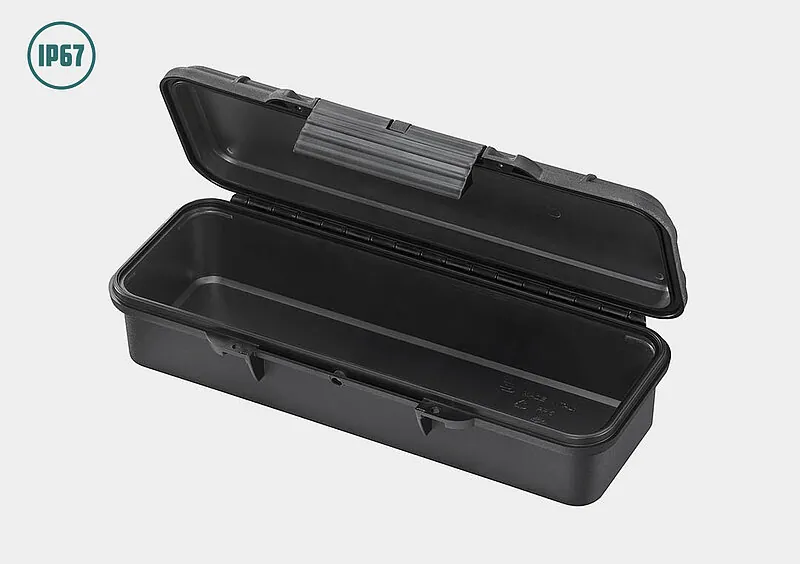

RoseCase ProSecure · Small caseRCPS 92
IP67 waterproof hard case
IP67RCPS 92 in brief
The RCPS 92 is an IP67 waterproof protective case from the RoseCase ProSecure range (Rose Plastic, Germany): 1.6 L, inner 292 × 92 × 65 mm, 0.28 kg, supplied in India with custom foam and branding by Candid Medpack, Ahmedabad.
- IP67 waterproof & dustproof
- Padlock eyelets
Authorised partner · stock & foam workshop in Ahmedabad · GST invoiceWhat the RCPS 92 is built with

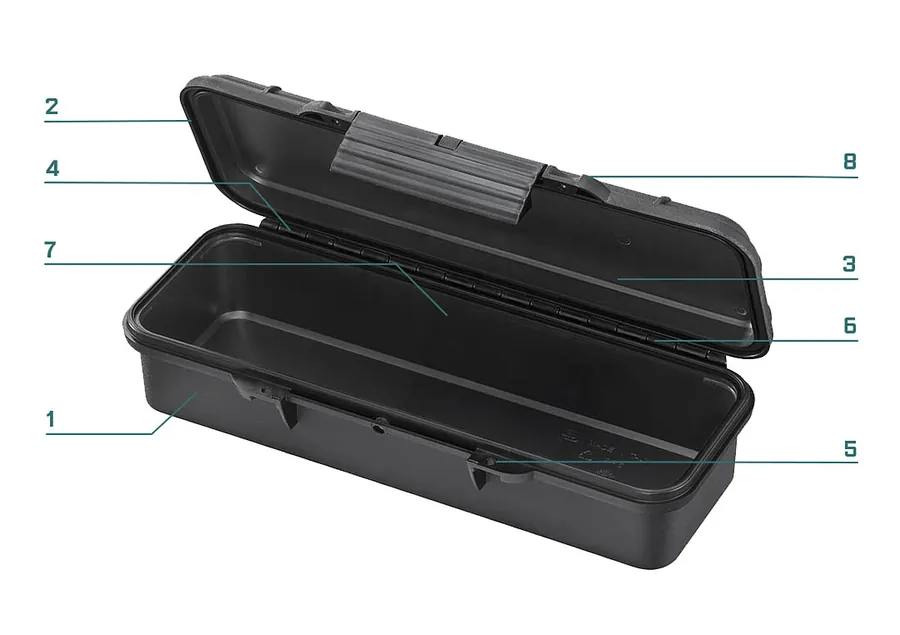

Numbers match the diagram. Hover a feature to see it on the case.
- Extra-thick walls1
Extremely impact-resistant thanks to extra-thick walls – built for the toughest conditions
1 - Sealed lid2
Sealed lid for maximum protection against the ingress of dust, water, and moisture
2 - Thermally stable3
Thermally stable – even when exposed to extreme temperatures
3 - Corrosion-proof pins4
Corrosion-resistant nylon pins for long-lasting durability
4 - Padlock eyelets5
Padlock eyelets for added security during transport
5 - Full-length hinge6
Sturdy full-length hinge for enhanced structural integrity
6 - Foam & divider options7
Wide range of interior options available – including custom foam materials, pick-and-pluck foam, convoluted foam, or divider systems for flexible organization
7 - Print & label branding8
Branding options available via printing or labeling
8
Each tile flips to show the manufacturer's wording; the number on the tile is the number on the diagram.
RCPS 92 specifications
Manufacturer data · W × H × D in millimetres- Model
- RCPS 92
- Range
- RoseCase ProSecure · Small cases
- Inner dimensions
- 292 × 92 × 65 mm
- Outer dimensions
- 309 × 128 × 71.5 mm
- Inner depth
- Base 51.5 mm · Lid 13.5 mm
- Volume
- 1.6 L
- Weight (empty)
- 0.28 kg
- Temperature range
- -10°C to 80°C
- Packaging unit
- 15 per carton
- Materials
- Polypropylene (PP), Nylon
- Stock colours
- black
- Foam options
- Convoluted foam, Cubed foam, Customized foam; custom-cut by Candid Medpack
- Certifications
- IP67dust-tight; immersion to 1 m for 30 min
- Branding
- Screen or pad printing, labels; custom shell and closure colours on request
Official PDF datasheet or certification manual? Ask us — we send it with your quotation.
Customise the RCPS 92
Fitted and branded in Ahmedabad, delivered as a finished kit.Custom-cut foam
CNC-cut or thermoformed inserts around your items.
Printing & labels
Logo and handling text on the shell or lid.
Colours & accessories
Other colours for larger runs. Straps, dividers, pouches, padlocks.
RCPS 92 questions, answered
What are the dimensions and weight of the RCPS 92?
The RCPS 92 measures 292 × 92 × 65 mm inside and 309 × 128 × 71.5 mm outside (W × H × D). The base is 51.5 mm deep and the lid 13.5 mm. Usable volume is 1.6 L and the empty case weighs 0.28 kg.
Is the RCPS 92 waterproof?
Yes. The RCPS 92 is rated IP67: dust-tight and protected against temporary immersion in water (1 m for 30 minutes). The lid seal keeps out water, dust and moisture.
Can I get custom foam for the RCPS 92?
Yes. The RCPS 92 can be supplied empty or with convoluted foam, cubed foam or customized foam. Candid Medpack designs and cuts customised foam in Ahmedabad, so instruments, devices or tools sit in a precise cavity; send us the items or their drawings and we prototype the insert.
What colours and branding options are available for the RCPS 92?
The RCPS 92 is stocked in black. The surface takes screen or pad printing and labels, so your logo, product name or handling instructions can go directly on the case.
Need the RCPS 92 with foam cut for your equipment?
Send the items or drawings; we confirm fit, propose the insert and quote from stock in India.
