RoseCase ProSecure · Small caseRCPS 225

IP67 waterproof hard case

300 × 225 × 132mmInner W × H × D
8.9LVolume
1.62kgWeight
Request a Quote All 45 ProSecure sizes

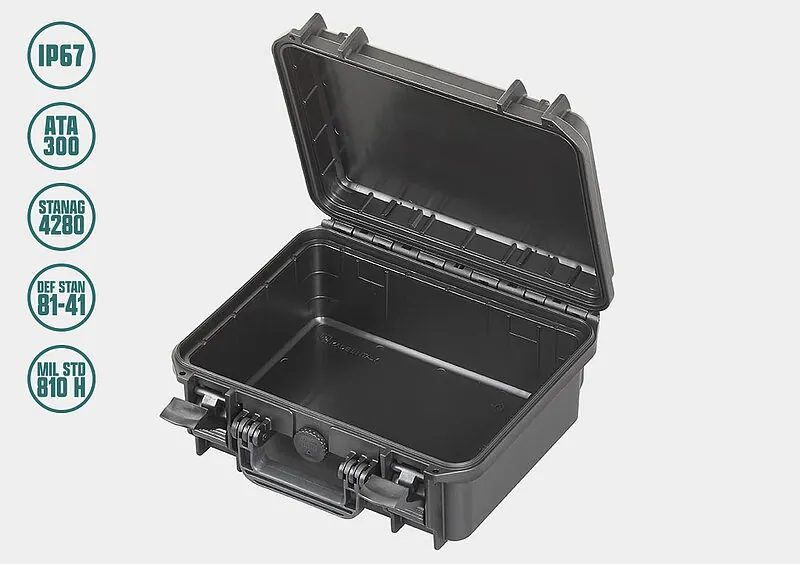

RoseCase ProSecure 225 open
CertifiedIP67 certifiedIP67ATA 300 certifiedATA 300STANAG 4280 certifiedSTANAG 4280DEF-STAN 81-41 certifiedDEF-STAN 81-41MIL STD 810 H certifiedMIL STD 810 H
Dimensions, to scale
W 300H 225D 132
Real proportionsDashed: lid / base split
A4 sheetInner footprint 300 x 225 mm
Top view, same scale
Inner W × H × D300 × 225 × 132 mm
Outer W × H × D336 × 300 × 148 mm
Base depth99 mm
Lid depth33 mm
Temperature range-30°C to 90°C
Packaging unit4 per carton
About this model

RCPS 225 in brief

The RCPS 225 is an IP67 waterproof protective case from the RoseCase ProSecure range (Rose Plastic, Germany): 8.9 L, inner 300 × 225 × 132 mm, 1.62 kg, supplied in India with custom foam and branding by Candid Medpack, Ahmedabad.

  • IP67 waterproof & dustproof
  • Pressure equalisation valve
  • Padlock eyelets
Colours (stock)
blackorange
Interior

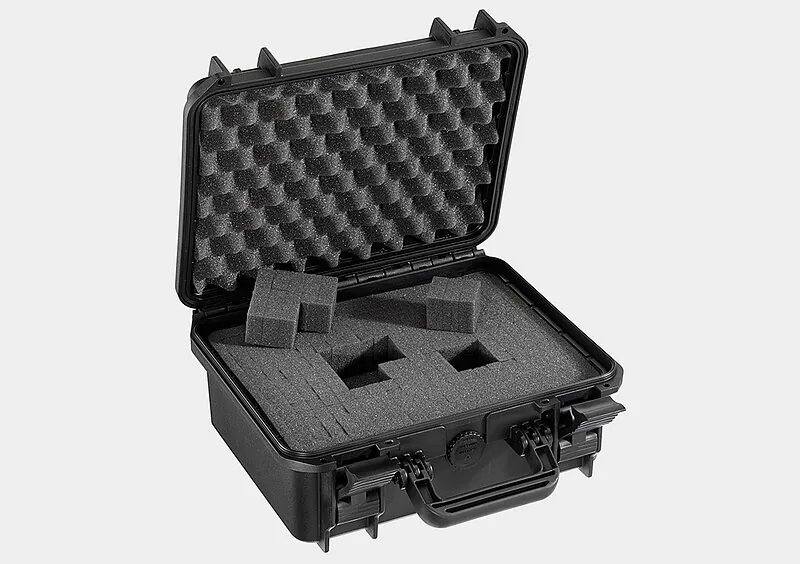

Convoluted foamCubed foamCustomized foamEmpty
Get a quote Ask a question
Rose Case Authorised partner · stock & foam workshop in Ahmedabad · GST invoice
Features & functions

What the RCPS 225 is built with

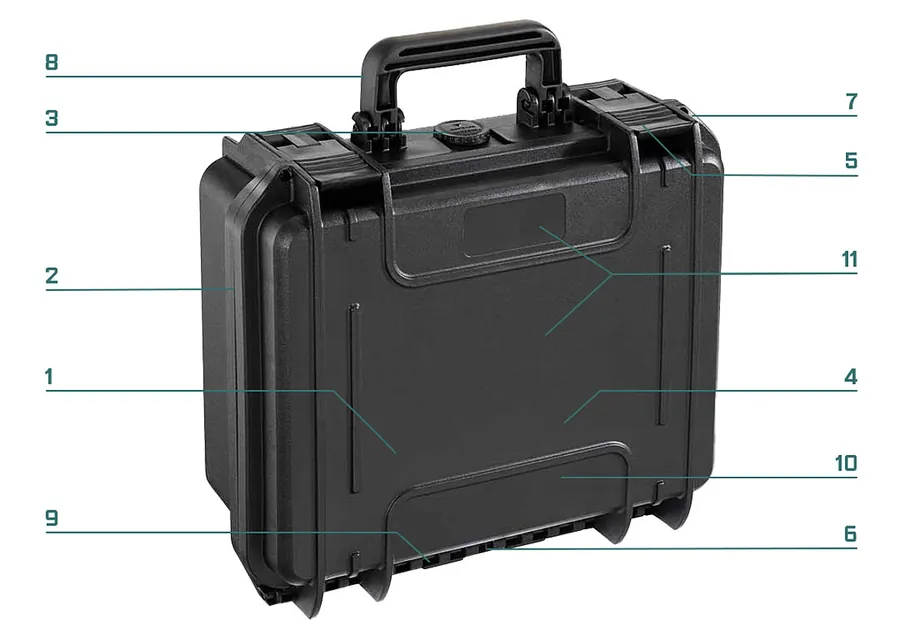

Numbers match the diagram. Hover a feature to see it on the case.
RoseCase ProSecure RCPS 225 numbered feature diagram
  • Extra-thick walls1

    Extremely impact-resistant thanks to extra-thick walls – built for the toughest conditions

    1
  • Sealed lid2

    Sealed lid for maximum protection against the ingress of dust, water, and moisture

    2
  • Pressure valve3

    Automatic pressure equalization valve prevents vacuum formation and protects the contents from air pressure changes

    3
  • Thermally stable4

    Thermally stable – even when exposed to extreme temperatures

    4
  • Two-stage snap locks5

    Easy-open, two-stage snap closures for maximum security

    5
  • Corrosion-proof pins6

    Corrosion-resistant nylon pins for long-lasting durability

    6
  • Padlock eyelets7

    Padlock eyelets for added security during transport

    7
  • Carry handle8

    Comfortable carrying handle

    8
  • Full-length hinge9

    Sturdy full-length hinge for enhanced structural integrity

    9
  • Foam & divider options10

    Wide range of interior options available – including custom foam materials, pick-and-pluck foam, convoluted foam, or divider systems for flexible organization

    10
  • Print & label branding11

    Branding options available via printing or labeling

    11

Each tile flips to show the manufacturer's wording; the number on the tile is the number on the diagram.

Datasheet

RCPS 225 specifications

Manufacturer data · W × H × D in millimetres
Model
RCPS 225
Range
RoseCase ProSecure · Small cases
Inner dimensions
300 × 225 × 132 mm
Outer dimensions
336 × 300 × 148 mm
Inner depth
Base 99 mm · Lid 33 mm
Volume
8.9 L
Weight (empty)
1.62 kg
Temperature range
-30°C to 90°C
Packaging unit
4 per carton
Materials
Polypropylene (PP), Nylon
Stock colours
black, orange
Foam options
Convoluted foam, Cubed foam, Customized foam; custom-cut by Candid Medpack
Certifications
IP67dust-tight; immersion to 1 m for 30 min
ATA 300airline transport packaging
STANAG 4280NATO packaging standard
DEF-STAN 81-41UK MoD packaging standard
MIL STD 810 HUS military environmental tests
Branding
Screen or pad printing, labels; custom shell and closure colours on request

Official PDF datasheet or certification manual? Ask us — we send it with your quotation.

Made for your product

Customise the RCPS 225

Fitted and branded in Ahmedabad, delivered as a finished kit.

Custom-cut foam

CNC-cut or thermoformed inserts around your items.

Printing & labels

Logo and handling text on the shell or lid.

Colours & accessories

Other colours for larger runs. Straps, dividers, pouches, padlocks.

Compare sizes

ProSecure sizes near the RCPS 225

All 45 sizes
RoseCase ProSecure RCPS 180 L

RCPS 180 L

235 × 180 × 156 mm
6.5 L · 1 kg · IP67
View details

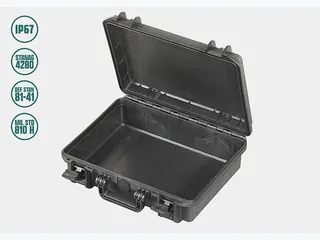

RoseCase ProSecure RCPS 270/1

RCPS 270/1

380 × 270 × 115 mm
11.7 L · 1.86 kg · IP67
View details
RoseCase ProSecure RCPS 195 L

RCPS 195 L

316 × 195 × 81 mm
4.9 L · 0.58 kg · IP67
View details
RoseCase ProSecure RCPS 180

RCPS 180

235 × 180 × 106 mm
4.4 L · 0.84 kg · IP67
View details
RoseCase ProSecure RCPS 195

RCPS 195

316 × 195 × 53 mm
3.2 L · 0.25 kg · IP67
View details
RoseCase ProSecure RCPS 125

RCPS 125

200 × 125 × 90 mm
2 L · 0.56 kg · IP67
View details
FAQ

RCPS 225 questions, answered

What are the dimensions and weight of the RCPS 225?

The RCPS 225 measures 300 × 225 × 132 mm inside and 336 × 300 × 148 mm outside (W × H × D). The base is 99 mm deep and the lid 33 mm. Usable volume is 8.9 L and the empty case weighs 1.62 kg.

Is the RCPS 225 waterproof?

Yes. The RCPS 225 is rated IP67: dust-tight and protected against temporary immersion in water (1 m for 30 minutes). The lid seal keeps out water, dust and moisture, and an automatic pressure equalisation valve prevents a vacuum forming after altitude or temperature changes. It is also tested to ATA 300, STANAG 4280, DEF-STAN 81-41 and MIL STD 810 H.

Can I get custom foam for the RCPS 225?

Yes. The RCPS 225 can be supplied empty or with convoluted foam, cubed foam or customized foam. Candid Medpack designs and cuts customised foam in Ahmedabad, so instruments, devices or tools sit in a precise cavity; send us the items or their drawings and we prototype the insert.

What colours and branding options are available for the RCPS 225?

The RCPS 225 is stocked in black, orange. The surface takes screen or pad printing and labels, so your logo, product name or handling instructions can go directly on the case.

Need the RCPS 225 with foam cut for your equipment?

Send the items or drawings; we confirm fit, propose the insert and quote from stock in India.

Request a Quote +91 90330 94915
