RoseCase ProSecure · Medium caseRCPS 335/1

IP67 waterproof hard case

465 × 335 × 125mmInner W × H × D
19.4LVolume
2.6kgWeight
Request a Quote All 45 ProSecure sizes

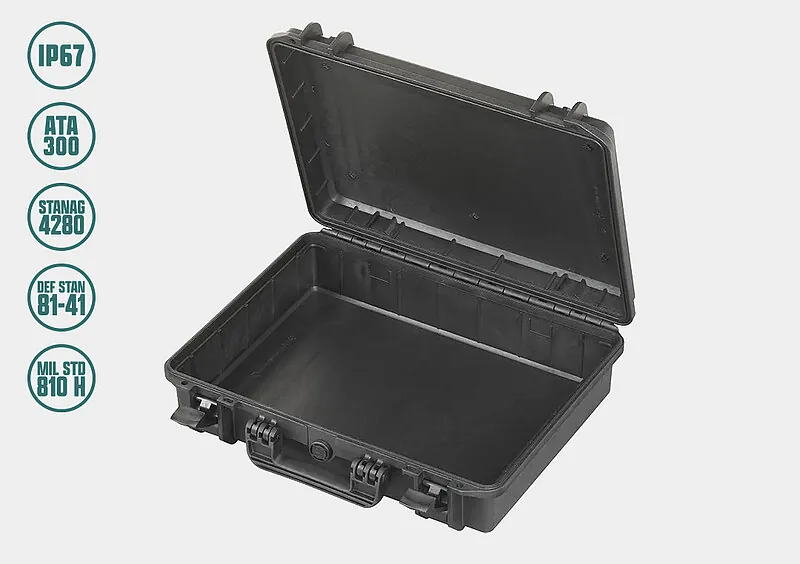

RoseCase ProSecure 335-1 open
CertifiedIP67 certifiedIP67ATA 300 certifiedATA 300STANAG 4280 certifiedSTANAG 4280DEF-STAN 81-41 certifiedDEF-STAN 81-41MIL STD 810 H certifiedMIL STD 810 H
Dimensions, to scale
W 465H 335D 125
Real proportionsDashed: lid / base split
A4 sheetInner footprint 465 x 335 mm
Top view, same scale
Inner W × H × D465 × 335 × 125 mm
Outer W × H × D502 × 415 × 141 mm
Base depth85 mm
Lid depth40 mm
Temperature range-30°C to 90°C
Packaging unit1 per carton
About this model

RCPS 335/1 in brief

The RCPS 335/1 is an IP67 waterproof protective case from the RoseCase ProSecure range (Rose Plastic, Germany): 19.4 L, inner 465 × 335 × 125 mm, 2.6 kg, supplied in India with custom foam and branding by Candid Medpack, Ahmedabad.

  • IP67 waterproof & dustproof
  • Pressure equalisation valve
  • Padlock eyelets
Colours (stock)
black
Interior

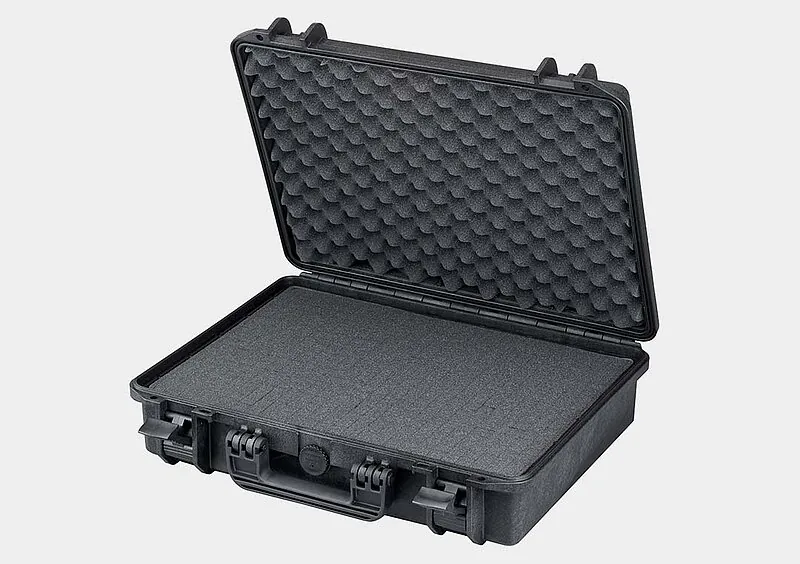

Convoluted foamCubed foamCustomized foamEmpty
Get a quote Ask a question
Rose Case Authorised partner · stock & foam workshop in Ahmedabad · GST invoice
Features & functions

What the RCPS 335/1 is built with

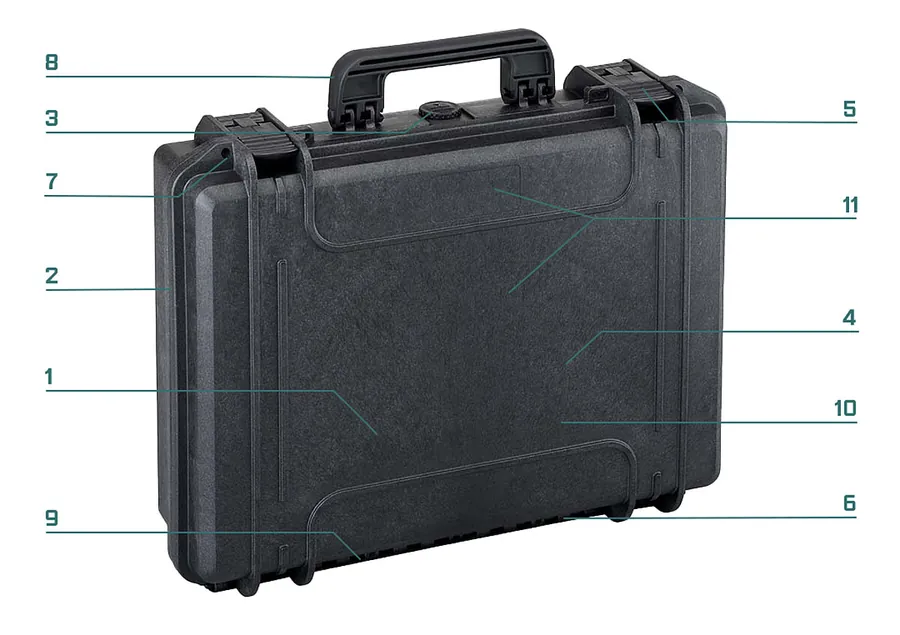

Numbers match the diagram. Hover a feature to see it on the case.
RoseCase ProSecure RCPS 335/1 numbered feature diagram
  • Extra-thick walls1

    Extremely impact-resistant thanks to extra-thick walls – built for the toughest conditions

    1
  • Sealed lid2

    Sealed lid for maximum protection against the ingress of dust, water, and moisture

    2
  • Pressure valve3

    Automatic pressure equalization valve prevents vacuum formation and protects the contents from air pressure changes

    3
  • Thermally stable4

    Thermally stable – even when exposed to extreme temperatures

    4
  • Two-stage snap locks5

    Easy-open, two-stage snap closures for maximum security

    5
  • Corrosion-proof pins6

    Corrosion-resistant nylon pins for long-lasting durability

    6
  • Padlock eyelets7

    Padlock eyelets for added security during transport

    7
  • Carry handle8

    Comfortable carrying handle

    8
  • Full-length hinge9

    Sturdy full-length hinge for enhanced structural integrity

    9
  • Foam & divider options10

    Wide range of interior options available – including custom foam materials, pick-and-pluck foam, convoluted foam, or divider systems for flexible organization

    10
  • Print & label branding11

    Branding options available via printing or labeling

    11

Each tile flips to show the manufacturer's wording; the number on the tile is the number on the diagram.

Datasheet

RCPS 335/1 specifications

Manufacturer data · W × H × D in millimetres
Model
RCPS 335/1
Range
RoseCase ProSecure · Medium cases
Inner dimensions
465 × 335 × 125 mm
Outer dimensions
502 × 415 × 141 mm
Inner depth
Base 85 mm · Lid 40 mm
Volume
19.4 L
Weight (empty)
2.6 kg
Temperature range
-30°C to 90°C
Packaging unit
1 per carton
Materials
Polypropylene (PP), Nylon
Stock colours
black
Foam options
Convoluted foam, Cubed foam, Customized foam; custom-cut by Candid Medpack
Certifications
IP67dust-tight; immersion to 1 m for 30 min
ATA 300airline transport packaging
STANAG 4280NATO packaging standard
DEF-STAN 81-41UK MoD packaging standard
MIL STD 810 HUS military environmental tests
Branding
Screen or pad printing, labels; custom shell and closure colours on request

Official PDF datasheet or certification manual? Ask us — we send it with your quotation.

Made for your product

Customise the RCPS 335/1

Fitted and branded in Ahmedabad, delivered as a finished kit.

Custom-cut foam

CNC-cut or thermoformed inserts around your items.

Printing & labels

Logo and handling text on the shell or lid.

Colours & accessories

Other colours for larger runs. Straps, dividers, pouches, padlocks.

Compare sizes

ProSecure sizes near the RCPS 335/1

All 45 sizes
RoseCase ProSecure RCPS 335/2

RCPS 335/2

465 × 335 × 220 mm
34.2 L · 3.42 kg · IP67
View details
RoseCase ProSecure RCPS 335/2 TR

RCPS 335/2 TR

465 × 335 × 220 mm
34.2 L · 4.42 kg · IP67 · Trolley
View details
RoseCase ProSecure RCPS 335 L

RCPS 335 L

630 × 335 × 335 mm
68 L · 7.2 kg · IP67 · Wheels
View details

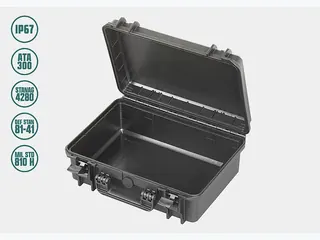

RoseCase ProSecure RCPS 290/1

RCPS 290/1

426 × 290 × 159 mm
19.6 L · 2.76 kg · IP67
View details

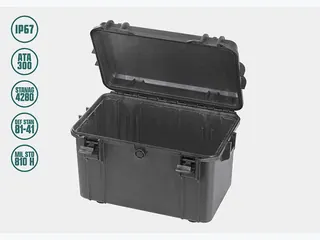

RoseCase ProSecure RCPS 230

RCPS 230

400 × 230 × 260 mm
22 L · 2.44 kg · IP67
View details

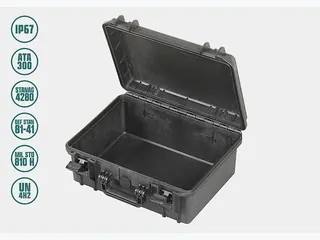

RoseCase ProSecure RCPS 270/2

RCPS 270/2

380 × 270 × 160 mm
16.4 L · 2.2 kg · IP67
View details
FAQ

RCPS 335/1 questions, answered

What are the dimensions and weight of the RCPS 335/1?

The RCPS 335/1 measures 465 × 335 × 125 mm inside and 502 × 415 × 141 mm outside (W × H × D). The base is 85 mm deep and the lid 40 mm. Usable volume is 19.4 L and the empty case weighs 2.6 kg.

Is the RCPS 335/1 waterproof?

Yes. The RCPS 335/1 is rated IP67: dust-tight and protected against temporary immersion in water (1 m for 30 minutes). The lid seal keeps out water, dust and moisture, and an automatic pressure equalisation valve prevents a vacuum forming after altitude or temperature changes. It is also tested to ATA 300, STANAG 4280, DEF-STAN 81-41 and MIL STD 810 H.

Can I get custom foam for the RCPS 335/1?

Yes. The RCPS 335/1 can be supplied empty or with convoluted foam, cubed foam or customized foam. Candid Medpack designs and cuts customised foam in Ahmedabad, so instruments, devices or tools sit in a precise cavity; send us the items or their drawings and we prototype the insert.

What colours and branding options are available for the RCPS 335/1?

The RCPS 335/1 is stocked in black. The surface takes screen or pad printing and labels, so your logo, product name or handling instructions can go directly on the case.

Need the RCPS 335/1 with foam cut for your equipment?

Send the items or drawings; we confirm fit, propose the insert and quote from stock in India.

Request a Quote +91 90330 94915
