RoseCase ProSecure · Small caseRCPS 270/2

IP67 waterproof hard case

380 × 270 × 160mmInner W × H × D
16.4LVolume
2.2kgWeight
Request a Quote All 45 ProSecure sizes

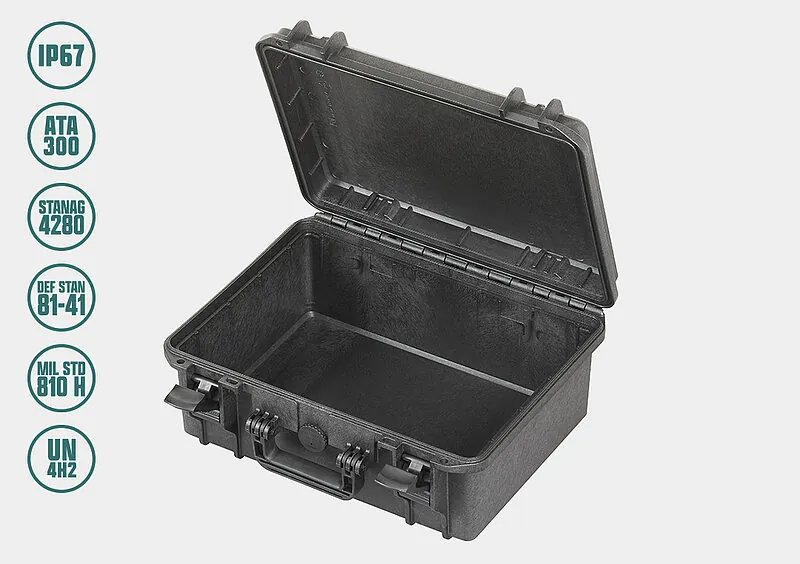

RoseCase ProSecure 270-2 open
CertifiedIP67 certifiedIP67ATA 300 certifiedATA 300STANAG 4280 certifiedSTANAG 4280DEF-STAN 81-41 certifiedDEF-STAN 81-41UN4H2 certifiedUN4H2MIL STD 810 H certifiedMIL STD 810 H
Dimensions, to scale
W 380H 270D 160
Real proportionsDashed: lid / base split
A4 sheetInner footprint 380 x 270 mm
Top view, same scale
Inner W × H × D380 × 270 × 160 mm
Outer W × H × D414 × 345 × 174 mm
Base depth124 mm
Lid depth36 mm
Temperature range-30°C to 90°C
Packaging unit2 per carton
About this model

RCPS 270/2 in brief

The RCPS 270/2 is an IP67 waterproof protective case from the RoseCase ProSecure range (Rose Plastic, Germany): 16.4 L, inner 380 × 270 × 160 mm, 2.2 kg, supplied in India with custom foam and branding by Candid Medpack, Ahmedabad.

  • IP67 waterproof & dustproof
  • Pressure equalisation valve
  • Padlock eyelets
Colours (stock)
black
Interior

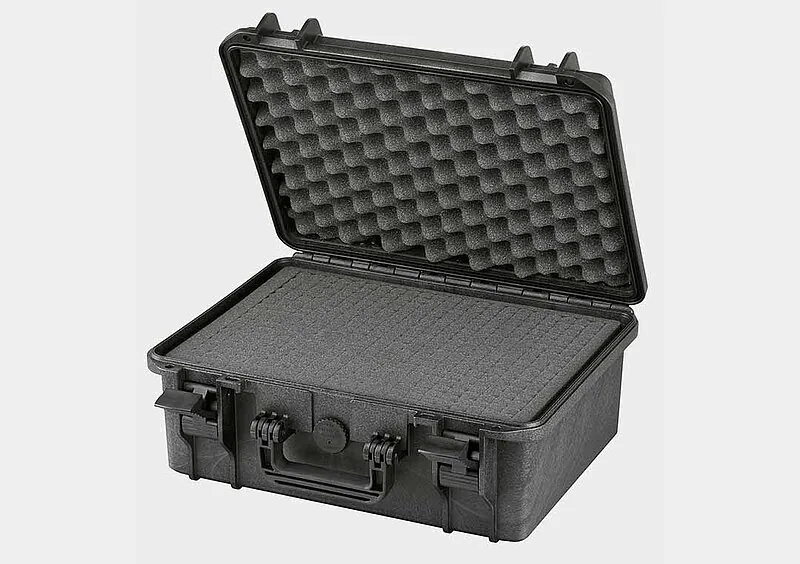

Convoluted foamCubed foamCustomized foamEmpty
Get a quote Ask a question
Rose Case Authorised partner · stock & foam workshop in Ahmedabad · GST invoice
Features & functions

What the RCPS 270/2 is built with

Numbers match the diagram. Hover a feature to see it on the case.

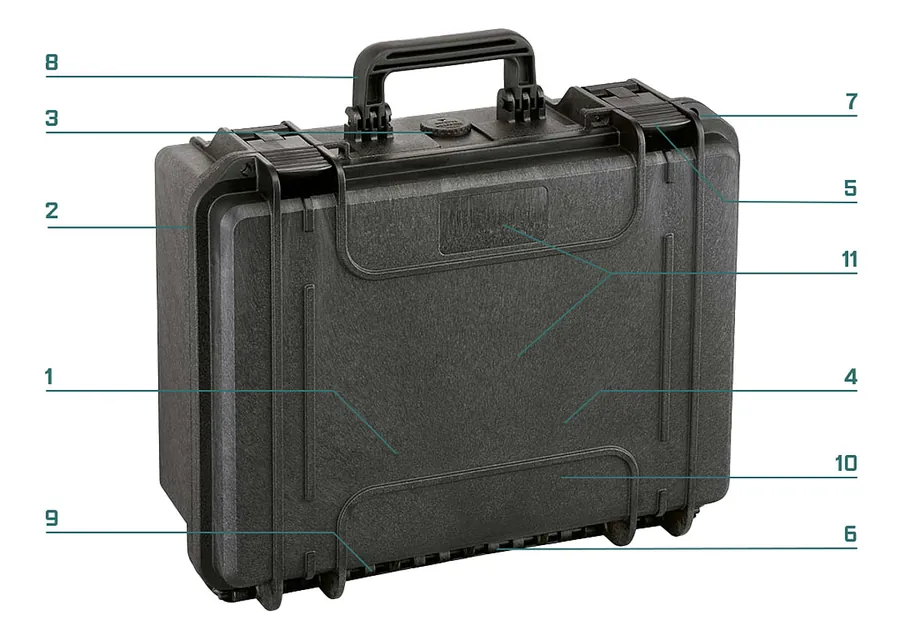

RoseCase ProSecure RCPS 270/2 numbered feature diagram
  • Extra-thick walls1

    Extremely impact-resistant thanks to extra-thick walls – built for the toughest conditions

    1
  • Sealed lid2

    Sealed lid for maximum protection against the ingress of dust, water, and moisture

    2
  • Pressure valve3

    Automatic pressure equalization valve prevents vacuum formation and protects the contents from air pressure changes

    3
  • Thermally stable4

    Thermally stable – even when exposed to extreme temperatures

    4
  • Two-stage snap locks5

    Easy-open, two-stage snap closures for maximum security

    5
  • Corrosion-proof pins6

    Corrosion-resistant nylon pins for long-lasting durability

    6
  • Padlock eyelets7

    Padlock eyelets for added security during transport

    7
  • Carry handle8

    Comfortable carrying handle

    8
  • Full-length hinge9

    Sturdy full-length hinge for enhanced structural integrity

    9
  • Foam & divider options10

    Wide range of interior options available – including custom foam materials, pick-and-pluck foam, convoluted foam, or divider systems for flexible organization

    10
  • Print & label branding11

    Branding options available via printing or labeling

    11

Each tile flips to show the manufacturer's wording; the number on the tile is the number on the diagram.

Datasheet

RCPS 270/2 specifications

Manufacturer data · W × H × D in millimetres
Model
RCPS 270/2
Range
RoseCase ProSecure · Small cases
Inner dimensions
380 × 270 × 160 mm
Outer dimensions
414 × 345 × 174 mm
Inner depth
Base 124 mm · Lid 36 mm
Volume
16.4 L
Weight (empty)
2.2 kg
Temperature range
-30°C to 90°C
Packaging unit
2 per carton
Materials
Polypropylene (PP), Nylon
Stock colours
black
Foam options
Convoluted foam, Cubed foam, Customized foam; custom-cut by Candid Medpack
Certifications
IP67dust-tight; immersion to 1 m for 30 min
ATA 300airline transport packaging
STANAG 4280NATO packaging standard
DEF-STAN 81-41UK MoD packaging standard
UN4H2UN dangerous-goods packaging
MIL STD 810 HUS military environmental tests
Branding
Screen or pad printing, labels; custom shell and closure colours on request

Official PDF datasheet or certification manual? Ask us — we send it with your quotation.

Made for your product

Customise the RCPS 270/2

Fitted and branded in Ahmedabad, delivered as a finished kit.

Custom-cut foam

CNC-cut or thermoformed inserts around your items.

Printing & labels

Logo and handling text on the shell or lid.

Colours & accessories

Other colours for larger runs. Straps, dividers, pouches, padlocks.

Compare sizes

ProSecure sizes near the RCPS 270/2

All 45 sizes
RoseCase ProSecure RCPS 270/1

RCPS 270/1

380 × 270 × 115 mm
11.7 L · 1.86 kg · IP67
View details
RoseCase ProSecure RCPS 335/1

RCPS 335/1

465 × 335 × 125 mm
19.4 L · 2.6 kg · IP67
View details
RoseCase ProSecure RCPS 290/1

RCPS 290/1

426 × 290 × 159 mm
19.6 L · 2.76 kg · IP67
View details
RoseCase ProSecure RCPS 230

RCPS 230

400 × 230 × 260 mm
22 L · 2.44 kg · IP67
View details

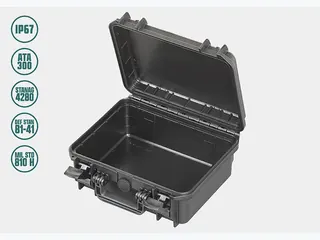

RoseCase ProSecure RCPS 225

RCPS 225

300 × 225 × 132 mm
8.9 L · 1.62 kg · IP67
View details
RoseCase ProSecure RCPS 180 L

RCPS 180 L

235 × 180 × 156 mm
6.5 L · 1 kg · IP67
View details
FAQ

RCPS 270/2 questions, answered

What are the dimensions and weight of the RCPS 270/2?

The RCPS 270/2 measures 380 × 270 × 160 mm inside and 414 × 345 × 174 mm outside (W × H × D). The base is 124 mm deep and the lid 36 mm. Usable volume is 16.4 L and the empty case weighs 2.2 kg.

Is the RCPS 270/2 waterproof?

Yes. The RCPS 270/2 is rated IP67: dust-tight and protected against temporary immersion in water (1 m for 30 minutes). The lid seal keeps out water, dust and moisture, and an automatic pressure equalisation valve prevents a vacuum forming after altitude or temperature changes. It is also tested to ATA 300, STANAG 4280, DEF-STAN 81-41, UN4H2 and MIL STD 810 H.

Can I get custom foam for the RCPS 270/2?

Yes. The RCPS 270/2 can be supplied empty or with convoluted foam, cubed foam or customized foam. Candid Medpack designs and cuts customised foam in Ahmedabad, so instruments, devices or tools sit in a precise cavity; send us the items or their drawings and we prototype the insert.

What colours and branding options are available for the RCPS 270/2?

The RCPS 270/2 is stocked in black. The surface takes screen or pad printing and labels, so your logo, product name or handling instructions can go directly on the case.

Need the RCPS 270/2 with foam cut for your equipment?

Send the items or drawings; we confirm fit, propose the insert and quote from stock in India.

Request a Quote +91 90330 94915
